Reusable Spring Wire Connector Terminal Block 2/3/5 Way Clamp

Details

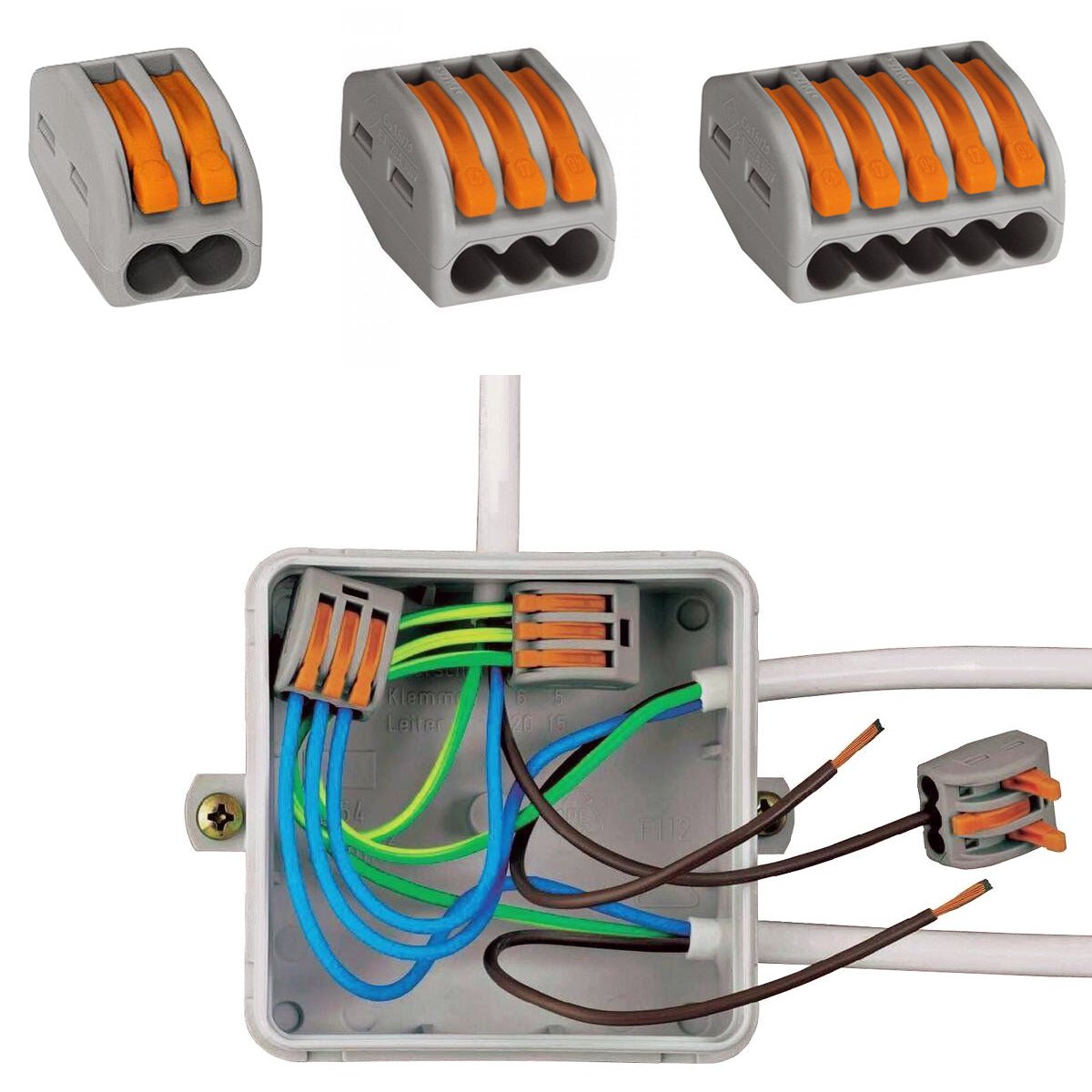

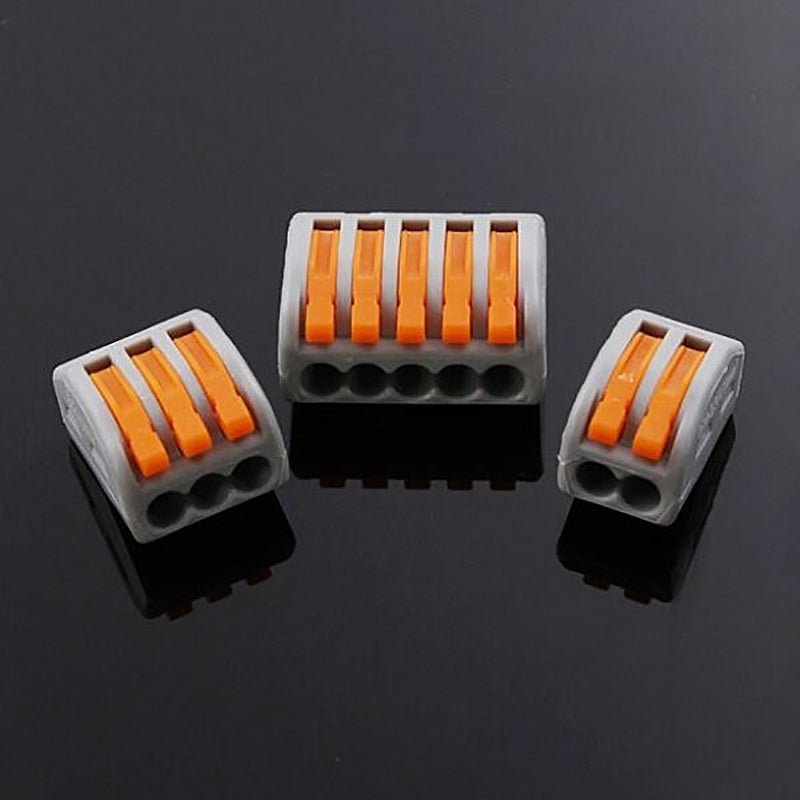

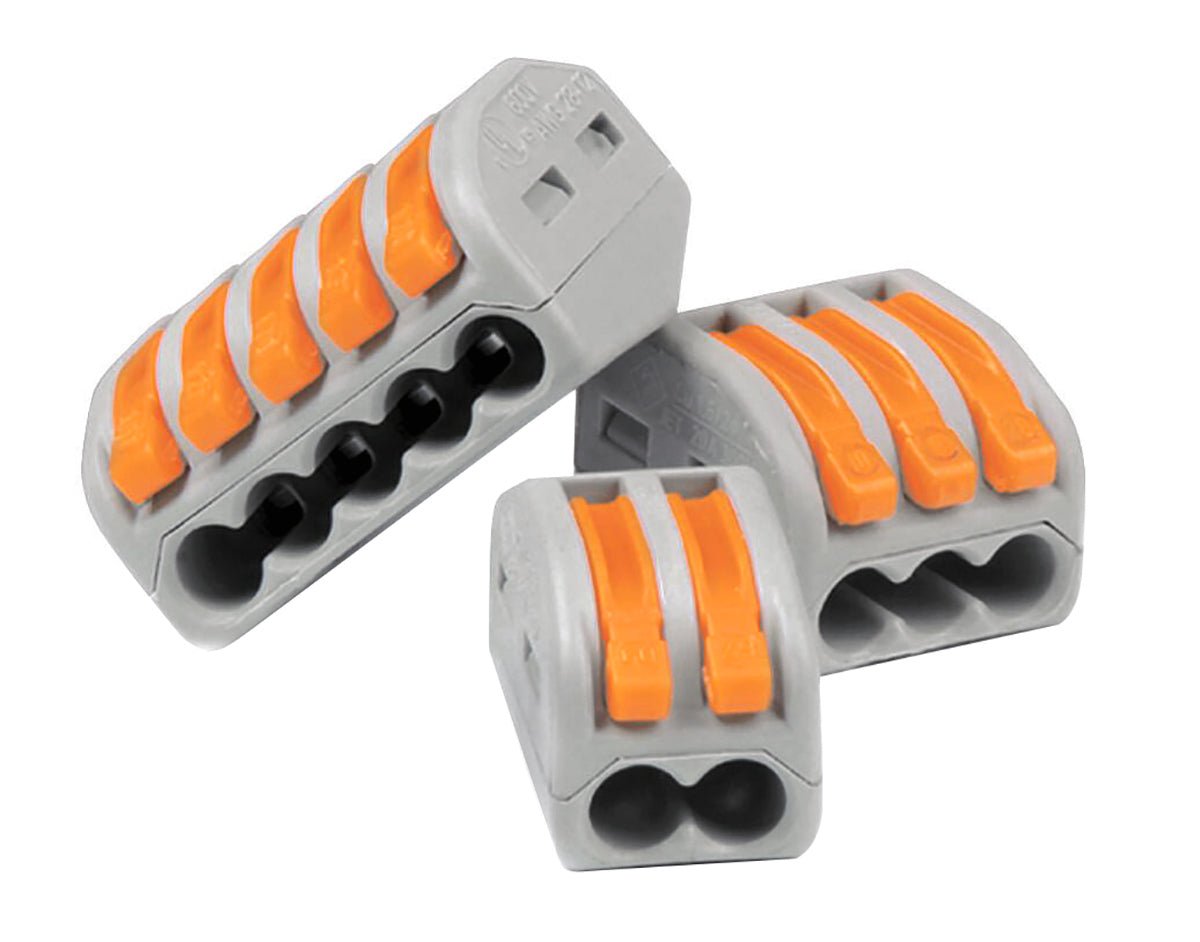

Terminal block 2 Port, 3 Port & 5 Port is supplied in different pack sizes, These connectors will accept 0.755mm - 2.5mm solid core & stiff stranded core cables.

Particulars:

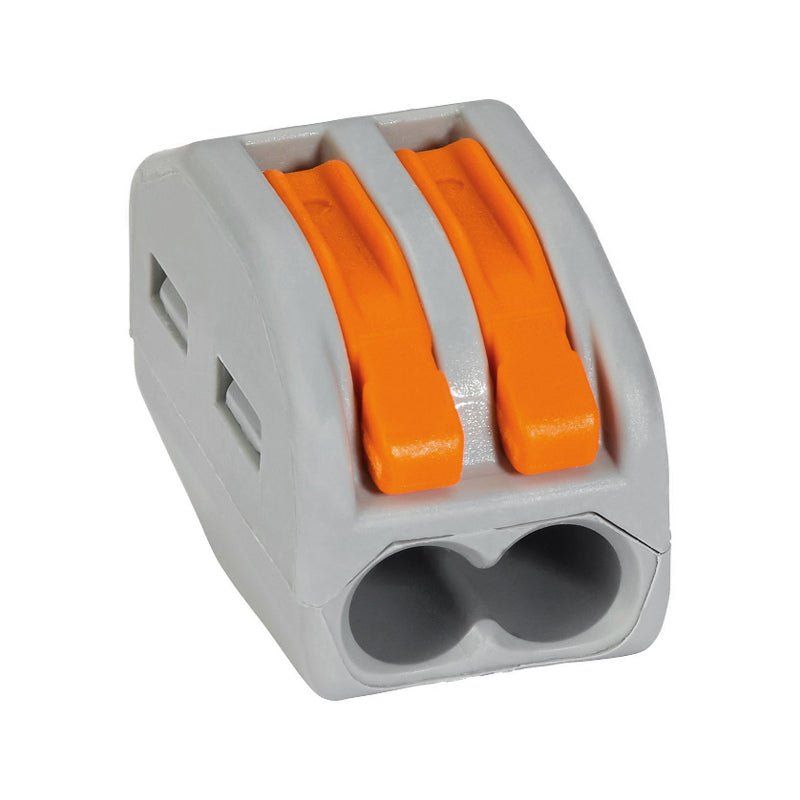

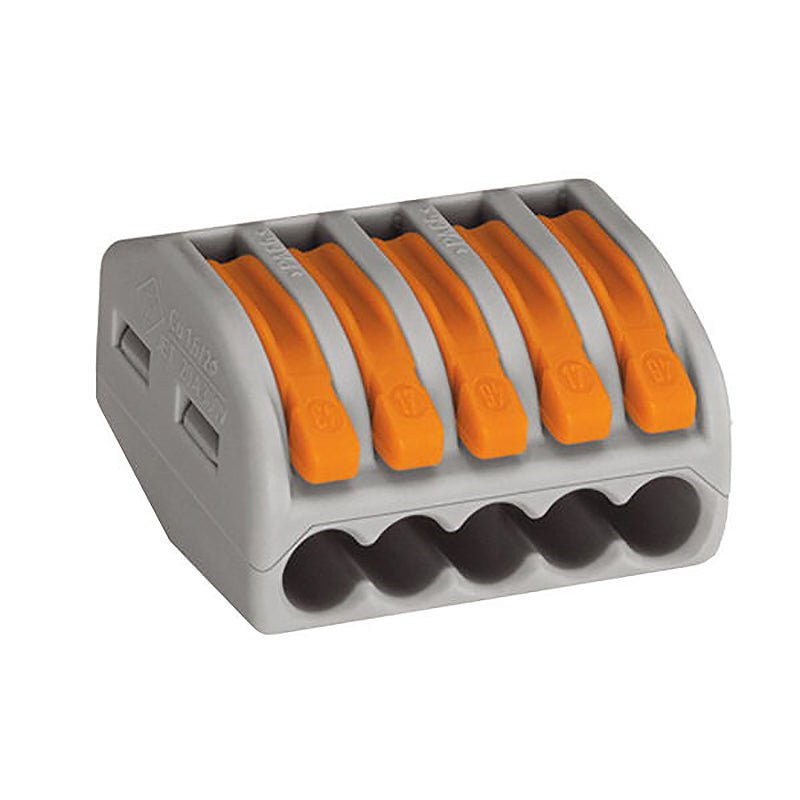

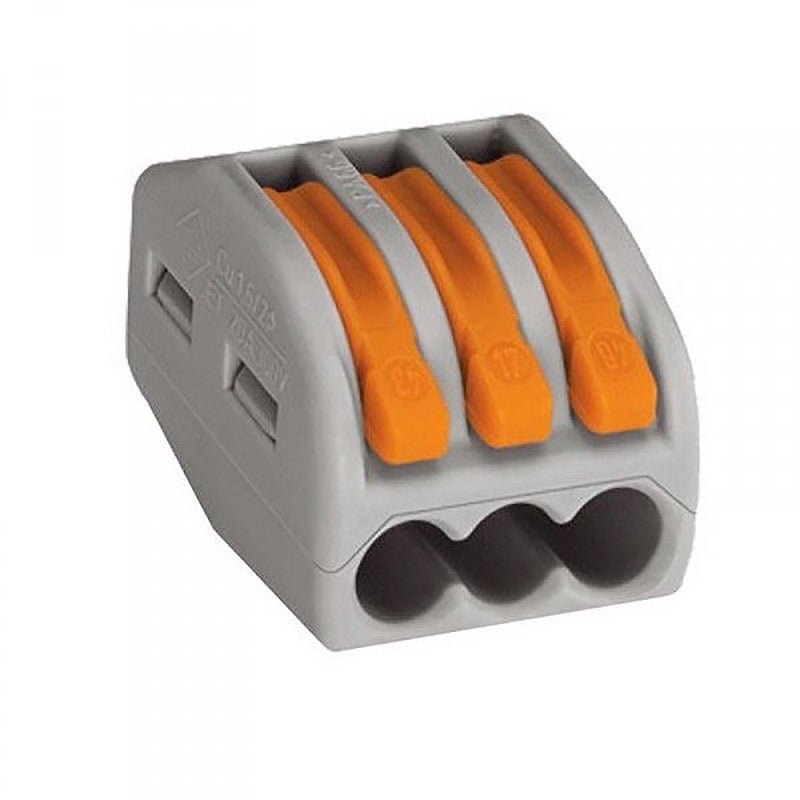

• Terminal Block- 2P, 3P or 5P
• Wire Capacity:  0.755mm - 2.5mm
• Rated voltage/Current : 600V/24A
• Voltage Resistance: AC2000V/DC500V
• Max Strength: 8KG-10KG

Installation:

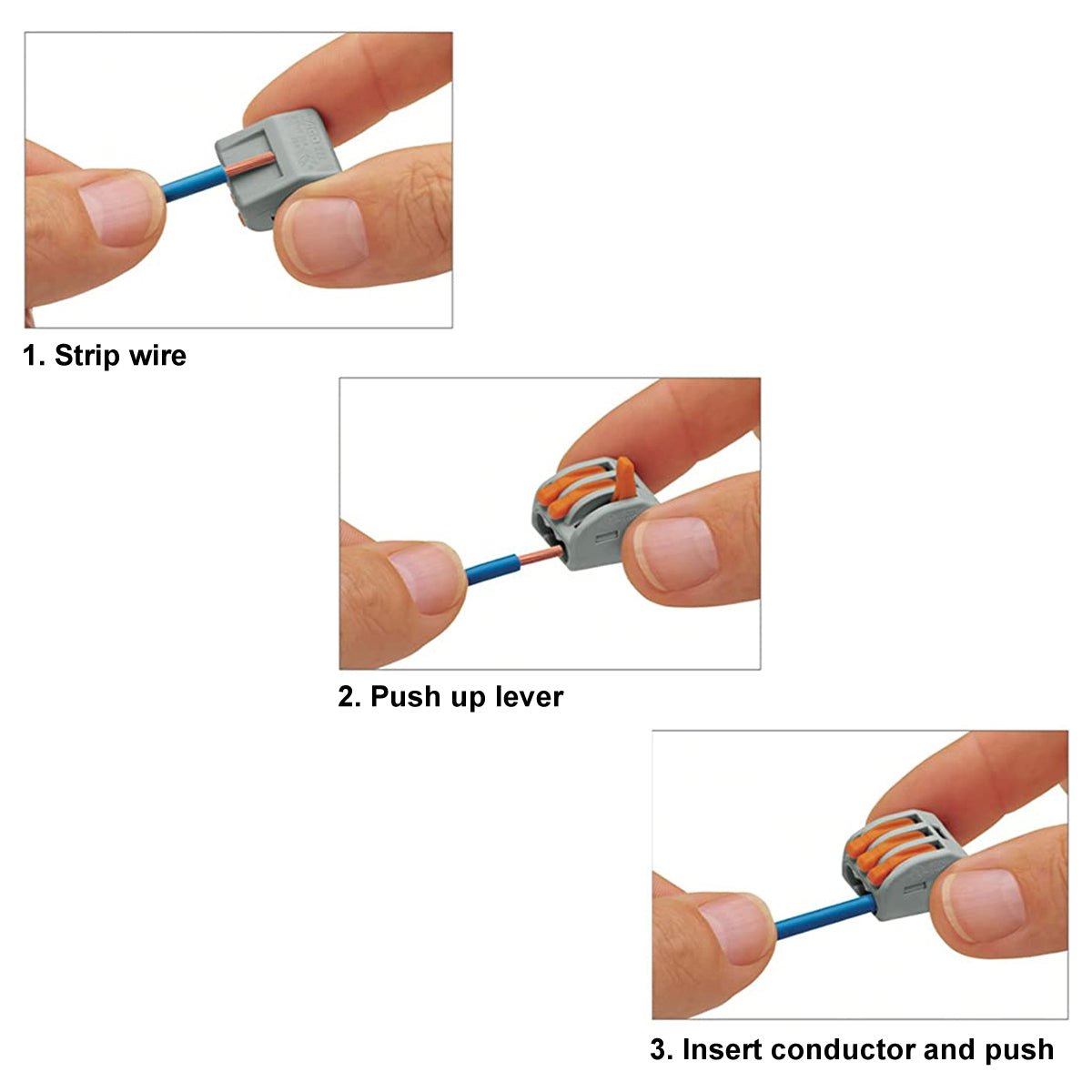

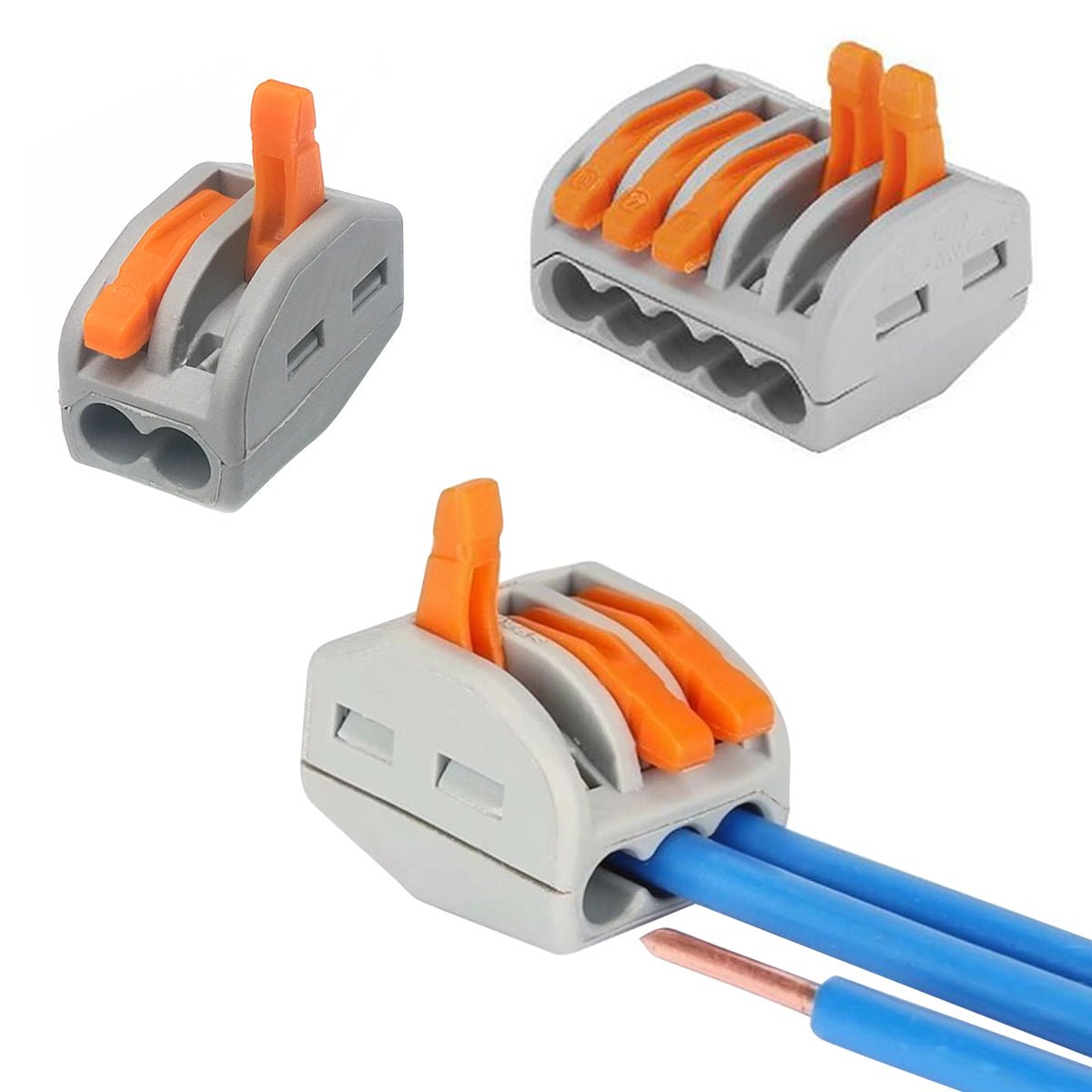

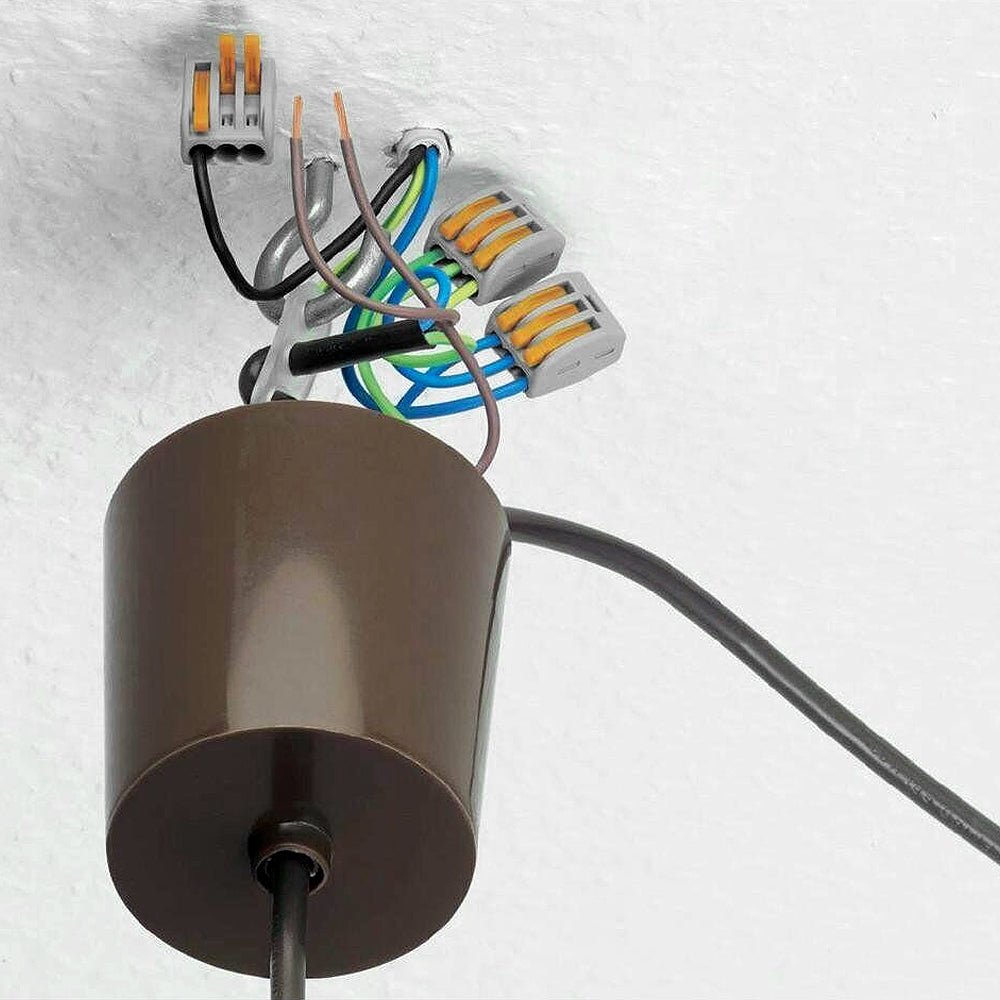

The operation of the series terminals is simplicity itself. The cage clamp inside the connector block is opened by using one of the integrated orange levers. Once in the open position the clamp is ready to accept the insertion of the stripped conductor. Close the lever flush with the body of the connector block and the connection is complete. To remove a conductor simply open the clamp and the connector can be reused. There is a test point in the base of the housing.
