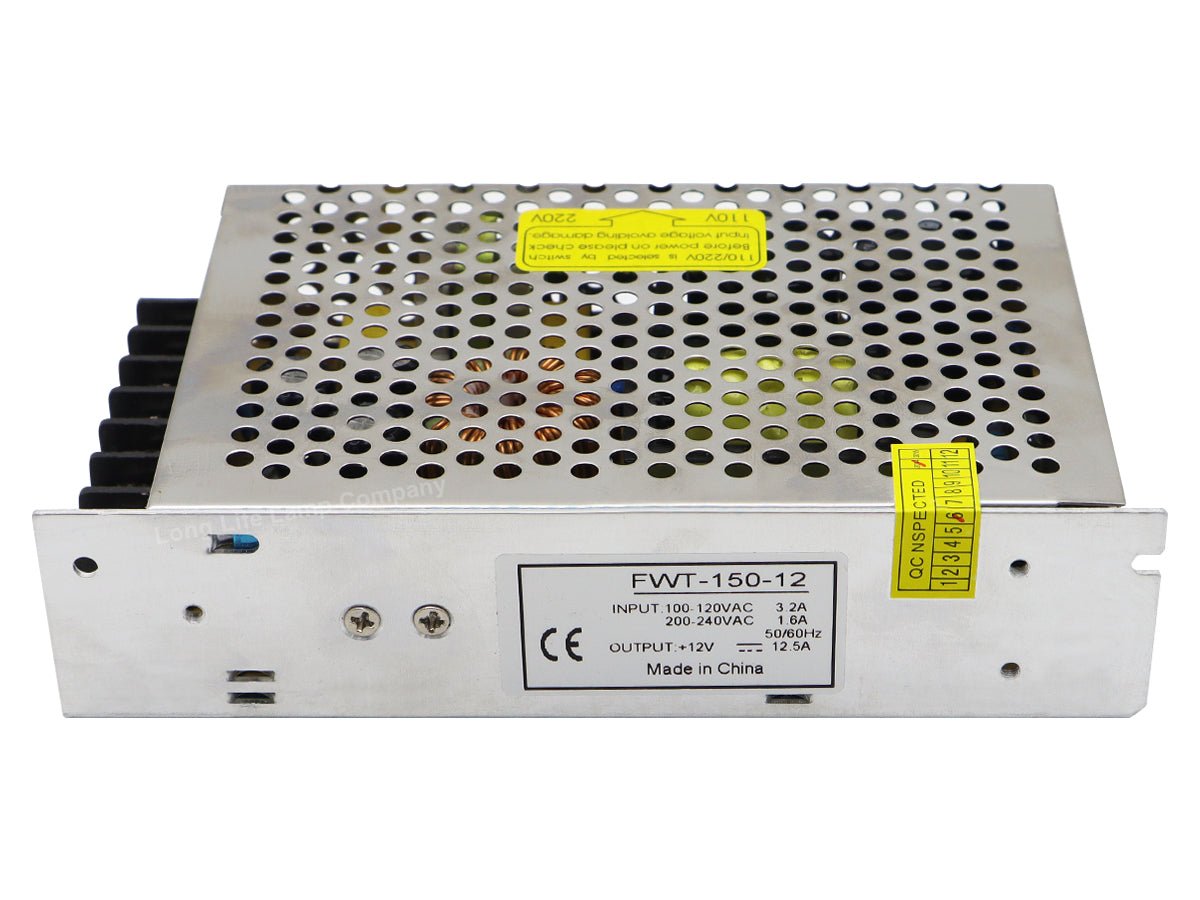

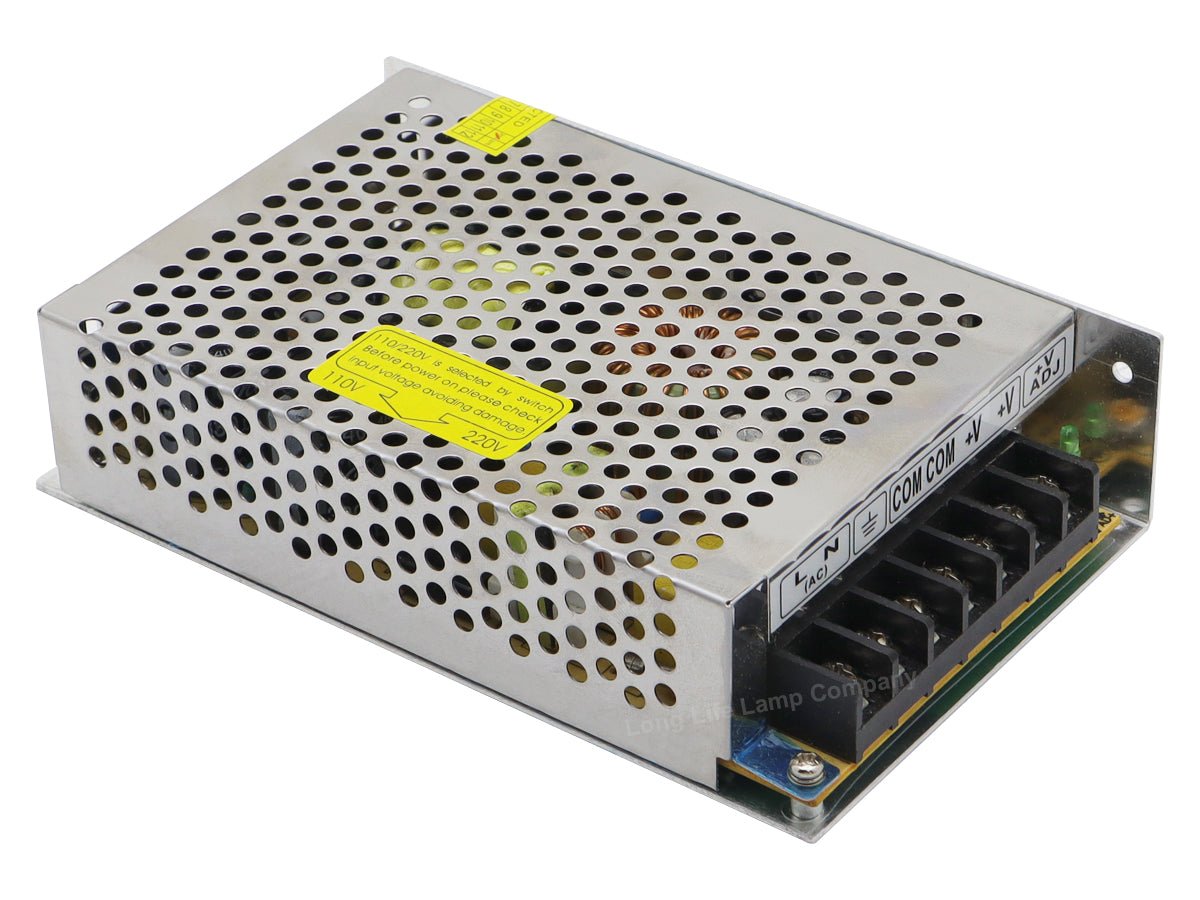

150W 12V LED Driver Transformer MR16 MR11 G4

Details

The 150W LED Driver Transformer is a high-capacity electronic power supply designed for compatible 12V MR16, MR11 and G4 LED light bulbs. Providing a regulated 12V DC output and supporting connected loads from 3W up to 150W, it is suitable for larger low-voltage LED lighting installations where multiple lamps or a higher combined wattage are required.

The driver connects to a 220–240V AC 50/60Hz mains supply and converts the incoming voltage to 12V DC for compatible LED lighting. It can be used when replacing suitable conventional low-voltage transformers with an LED-specific driver, provided the connected lamps require a 12V DC supply and the combined load remains within the specified operating range.

Measuring approximately 200mm long × 100mm wide × 40mm high, the driver requires adequate installation space and ventilation. The manufacturer specifies a maximum ambient temperature of 50°C and a maximum case temperature of 75°C, so these limits should be considered when selecting the installation location.

The driver is rated at 150W maximum, with a stated working load of 3W–150W. Before installation, confirm that all connected MR16, MR11 or G4 LED lamps are electrically compatible with a 12V DC supply and that their total wattage does not exceed the driver's capacity.

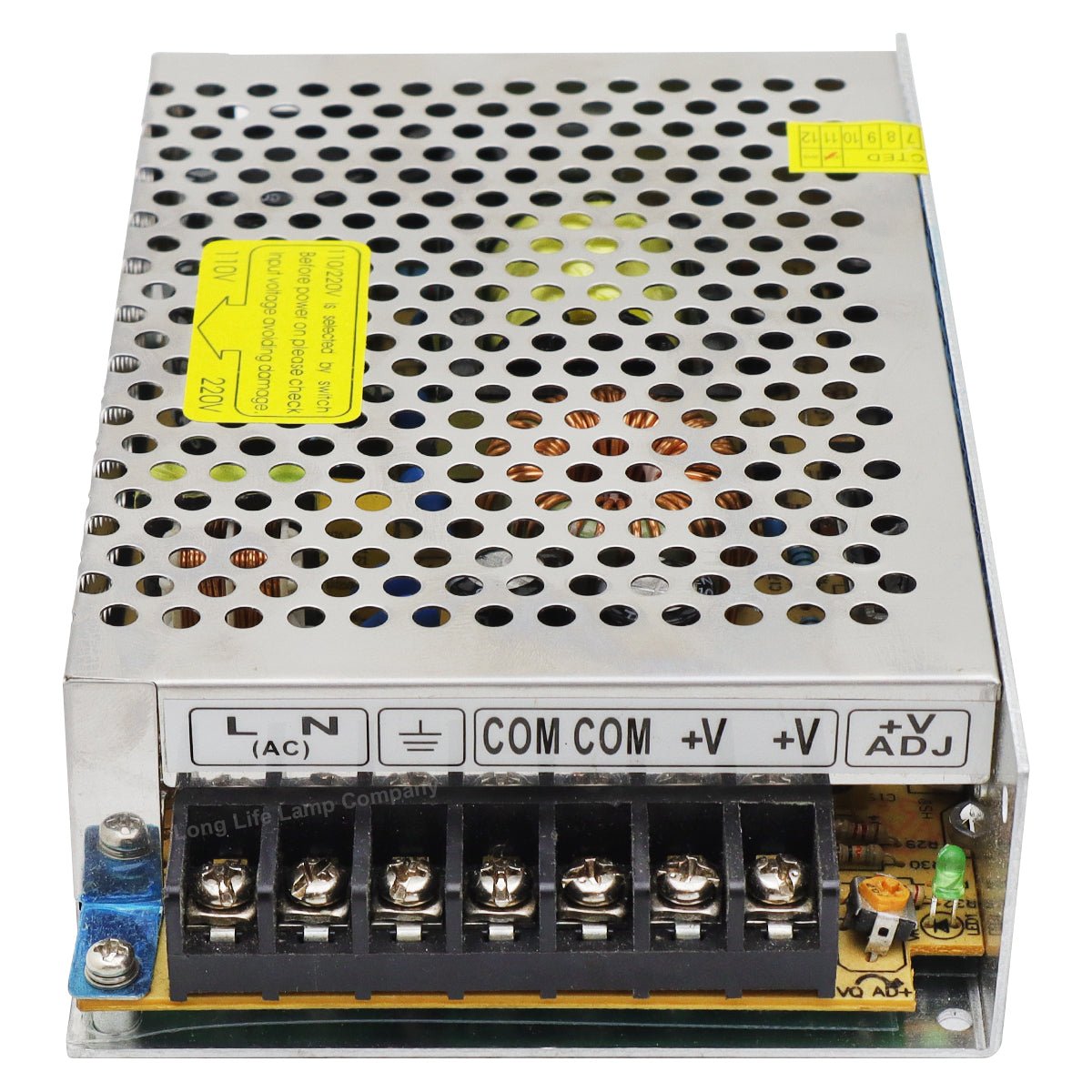

Important: this product has open electrical terminals. Installation should therefore be carried out within a suitable enclosure or installation environment by a competent person, with all mains connections properly isolated and protected.

Key Features

• Power Output: 3W–150W, maximum 150W
• Output Voltage: 12V DC
• Input Voltage: 220–240V AC, 50/60Hz
• Compatibility: MR16, MR11 and G4 LED light bulbs
• Dimensions: 200 × 100 × 40mm
• Operating Temperature: Max ambient 50°C; max case 75°C
• Important: Open electrical terminals require suitable installation and protection
